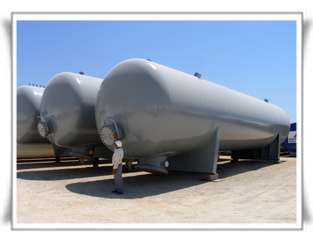

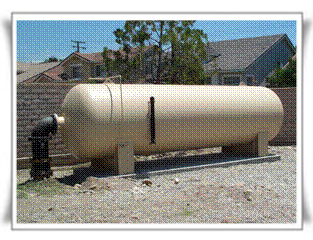

Lpg Surge Vessels

Introduction :-

We manufacture Surge tanks for Water pipe line, Desalination plants, Crude oil pipe lines and other applications. Horizontal and vertical types are provided. These tanks are Diaphragm type or Air pressure type with compressor. Orifice plates, butter fly valves, Level instruments, pipeline etc. are provided as required.

Technical Specification :

Design Code	ASME , AD MERKBALTTER , PD 5500 , CODAP 2000 AND OTHERS
Design Pressure	0 to 70 Bar
Design Temperature	Ambient
Volume(Unit Litres)	1 to 500

BLADDER TANKS

Air in bladder type	Water in bladder type

The surge protection is mainly achieved with two types of bladder tanks:

Air in bladder type

Water in bladder type

• These Tanks are charged within bladder inside the tank , and the air losses due to absorption are minimum.

• Since, Air does not come into contact with the liquid in the tank.
• The bladder will typically be pre-charged at installation with a pre-determined pressure to give the correct operating level in the tank when the unit is connected to the main and at the operating pressure.
• The bladder is made from a highly elastic rubber, such as butyl rubber, and may be sized to expand to fit the entire vessel.
• The anti- extrusion plate and inlet size are so selected that they do not restrict the flow in and out of the vessel. To prevent the bladder from being drawn into the main at low pressures ananti-extrusion plate is fixed at the outlet of the vessel .

• The tank material is chosen compatible with the liquid since it comes in contact with the tank inner surface while flowing in and out from the main line.

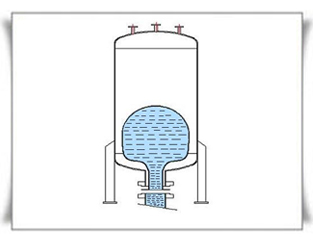

• Water in bladder tanks air is charged within the tank and the water from the mains flows in and out into the bladder.

• The bladder is made from a highly elastic rubber, such as butyl rubber, and may be sized to expand to fit the entire vessel.

• The air charge losses due to absorption are minimum since air does not come into contact with the liquid in the bladder.

• The whole tank will typically be pre- charged at installation with a pre- determined pressure to give the correct operating level in the tank when the unit is connected to the main and at the operating pressure.

• To prevent the bladder from being drawn into the main at low pressures ananti-extrusion plate is fixed at the outlet of the vessel .

• The anti- extrusion plate and inlet size are so selected that they do not restrict the flow in and out of the vessel.

• The Bladder material is chosen compatible with the liquid since it comes in contact with the bladder inner surface while flowing in and out from main lines.
